210-220w Double Glass Bipv Building Integrated Photovoltaic 45% Transmittance 4*18 Solar Cells

Name: 210220w Double Glass Bipv Building Integrated Photovoltaic 45 Transmittance 418 Solar Cells
Brand: SANGSOLAR
Price: 1 USD

Model Number : SANGSOLAR

Brand Name : SANGSOLAR

Certification : CE/TUV

Payment Terms : TT/LC/Alibabashop

Place of Origin : China

MOQ : 100m2

Price : Negotiated

Packaging Details : Wooden Box

Delivery Time : 10-30days

Supply Ability : 10000pcs/Month

Solar Cells : 4*18

Module Dimension [mm : 1767*1040*6mn

Weight [Kg : 25.5 Kg

Front Glass [mm : 1

Interlayer : EVA/POE/PVB

Back Glass [mm : 1

Contact Now

210-220w Double-Glass Transmittance Module 45%Transmittance

PRODUCT FEATURES

Optimized Power Gain

● High Resistance to PID;

● Low Risk of Micro-cracks;Zero Snail Trails Probability;

Unique Layout design to match the adhesive installation

● Unique design can meet the sunroom's requirements with excellent light transmittance and waterproof.

Higher-Than-Ever ROI

● 1500V System Voltage,Lower BOS Cost;

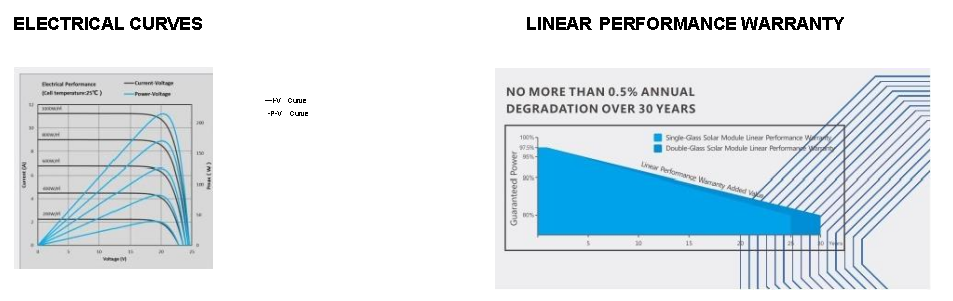

● Annual Degradation<0.5%,30-year Linear Performance Warranty;

● Frameless Design,Easier Surface Cleaning Lower O&M Cost;

Working Condition Compatibility &Safety

● High Resistance to High Temp.,High Humidity,Sand, Acid and Alkali Environment;

● 2400Pa Snow Loading,2400Pa Wind Loading;

Class-A Fireproofing;

210-220w Double Glass Bipv Building Integrated Photovoltaic 45% Transmittance 4*18 Solar Cells

MECHANICAL SPECIFICATIONS

Cell Type	Mono crystalline
Solar Cells	4*18
Module Dimension [mm	176710406mn
Weight [Kg	25.5
Front Glass [mm]	2.5 Semi tempered coated glass
Interlayer	EVA/POE/PVB
Back Glass [mm]	2.5 Semi tempered glass
Junction Box	lp67 Rated,3 by-pass diodes
Connector	Multi-Contact MC4(or equivalent)
Frame	No Frame
Maximum Load Capacity [Pa]	2400(windload)/2400(snow load)

ELECTRICAL CHARACTERISTICs
			DMJ36H(S)-210	DMJ36H(S)-215	DMJ36H(S)-220
STC Air Mass AM1.5,Ir- radiance 1000W/m Cell temperature 25℃	Maximum Power at STC [Pmax]	[W]	210	215	220
	Open Circuit Voltage [Voc]	[V]	24.35	24.63	24.95
	Short Circuit Current [lsc]	[A]	11.14	11.22	11.31
	Voltage at Maximum Power point[Vm]	[V]	20.00	20.31	20.62
	Current at Maximum Power point[lm]	[A]	10.50	10.59	10.67
	Power Tolerance	[%]	0~+3%
	Module Efficiency	[%]	11.4	11.6	11.9
NMOT: Air Mass AM1.5,Ir- radiance 800W/m Ambient tempera ture 20℃,wind speed 1m/s	Maximum Power at NMOT [Pmax]	[W]	157	161	164
	Open Circuit Voltage [Voc]	[V]	22.7	23.0	23.3
	Short Circuit Current[lsc]	[A]	8.98	9.05	9.12
	Voltage at Maximum Power point[Vm]	[V]	18.4	18.6	18.9
	Current at Maximum Power point[lm]	[A]	8.55	8.62	8.69
	Power Tolerance	[%]	0~+3%

WORKING CONDITIONS

Maximum System Voltage(With S)	[V]	1000 DC(IEC)
Maximum SystemVoltage(Without S)	[V]	1500 DC(IEC)
Operating Temperature	[C]	40~+85
Nominal Operating Cell Temperature	[℃]	45±3
Maximum rated current	[A]	20

TEMPERATURE COEFFICIENTS

Temperature Coefficient of Pmax	[%/℃]	-0.42
Temperature Coefficient of Voc	[%/℃]	-0.33
Temperature Coefficient of lso	[%/℃]	0.04
PACKAGE CONFIGURATION

Per box 38 pieces 40"HQ 988 piece
